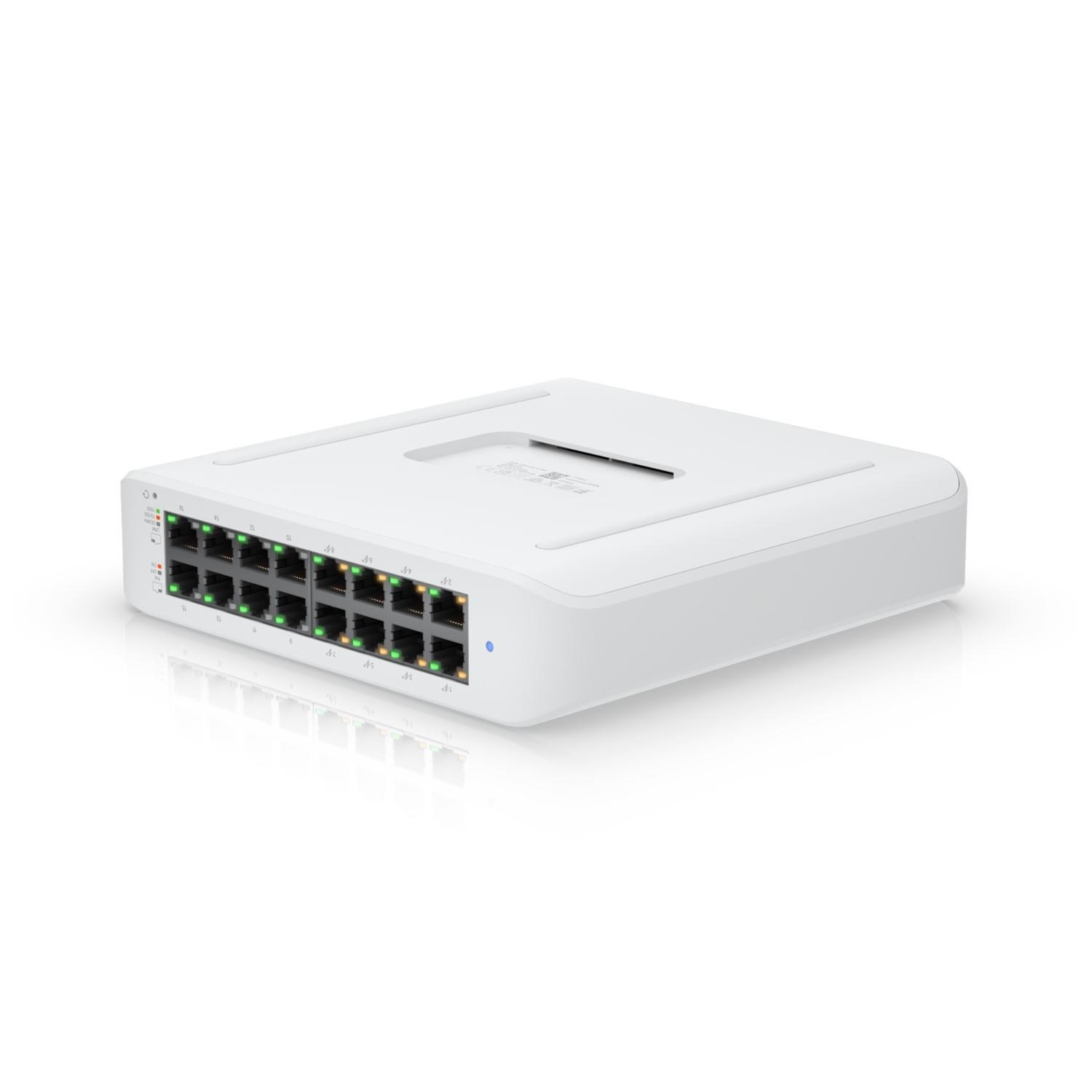

Ubquiti USW-LITE-16-POE UniFi Switch Lite 16 PoE/Layer 2/16x GbE RJ45 Ports/8x 802.3at PoE+ Ports/45W PoE/Wall Mount Kit Include
A wall-mountable. 16-port. Layer 2 PoE switch with a fanless cooling system.
- (8) GbE PoE+. (8) GbE ports
- 45W total PoE availability

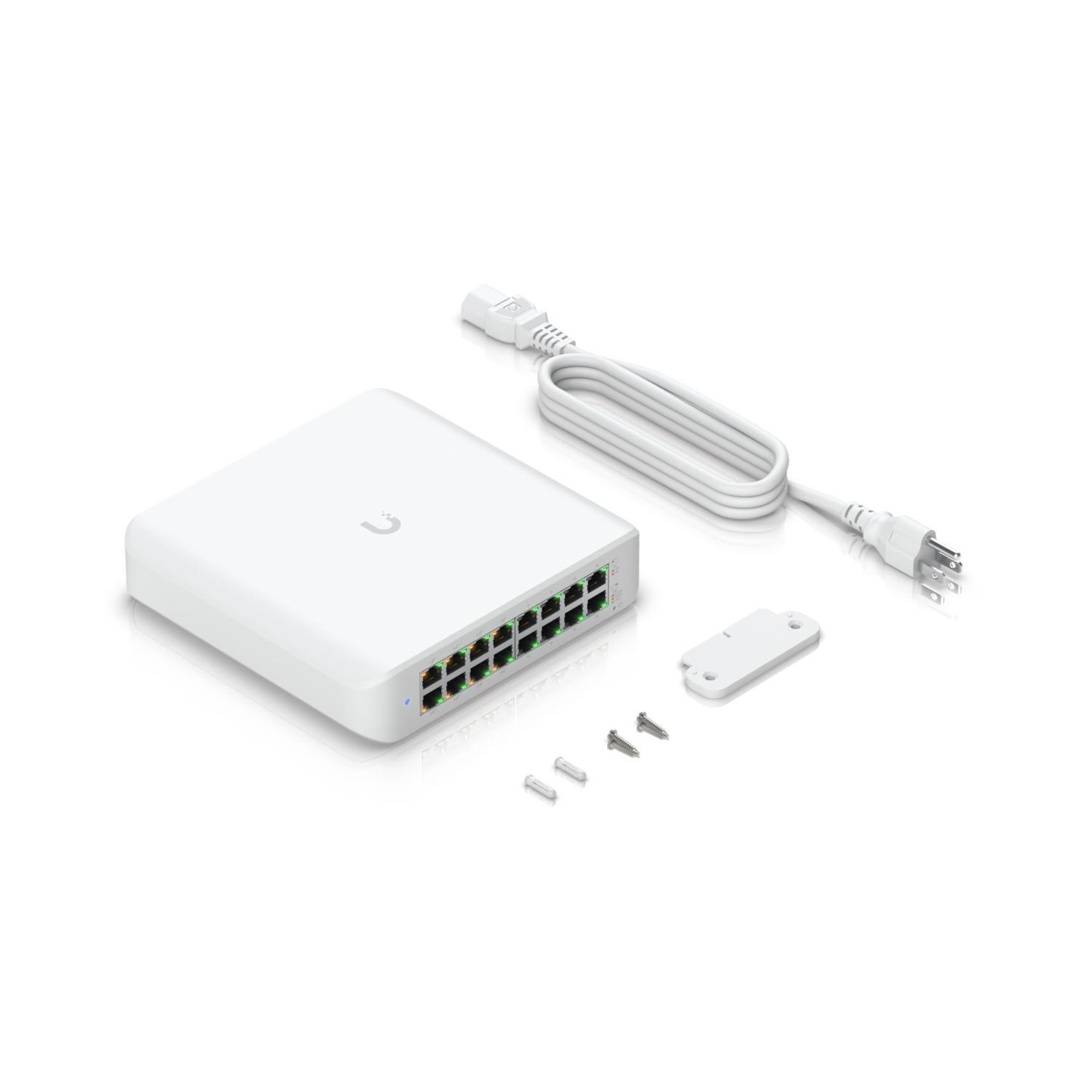

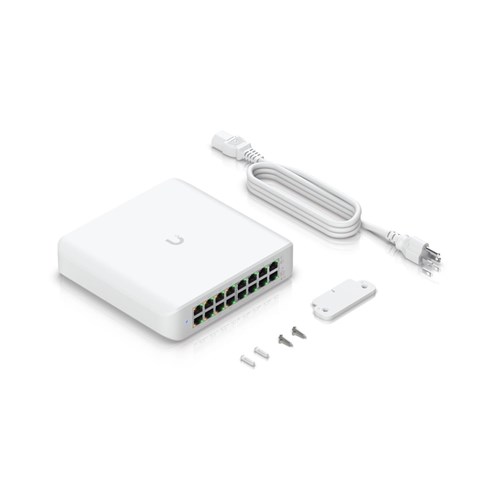

- Wall mountable
MECHANICAL
Dimensions: 192 x 185 x 44 mm (7.6 x 7.3 x 1.7')
Weight: 1.2 kg (2.6 lb)
Enclosure material: Polycarbonate
HARDWARE
Management interface: Ethernet In-Band

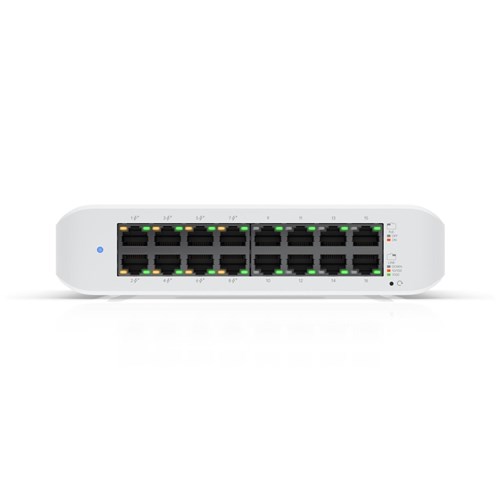

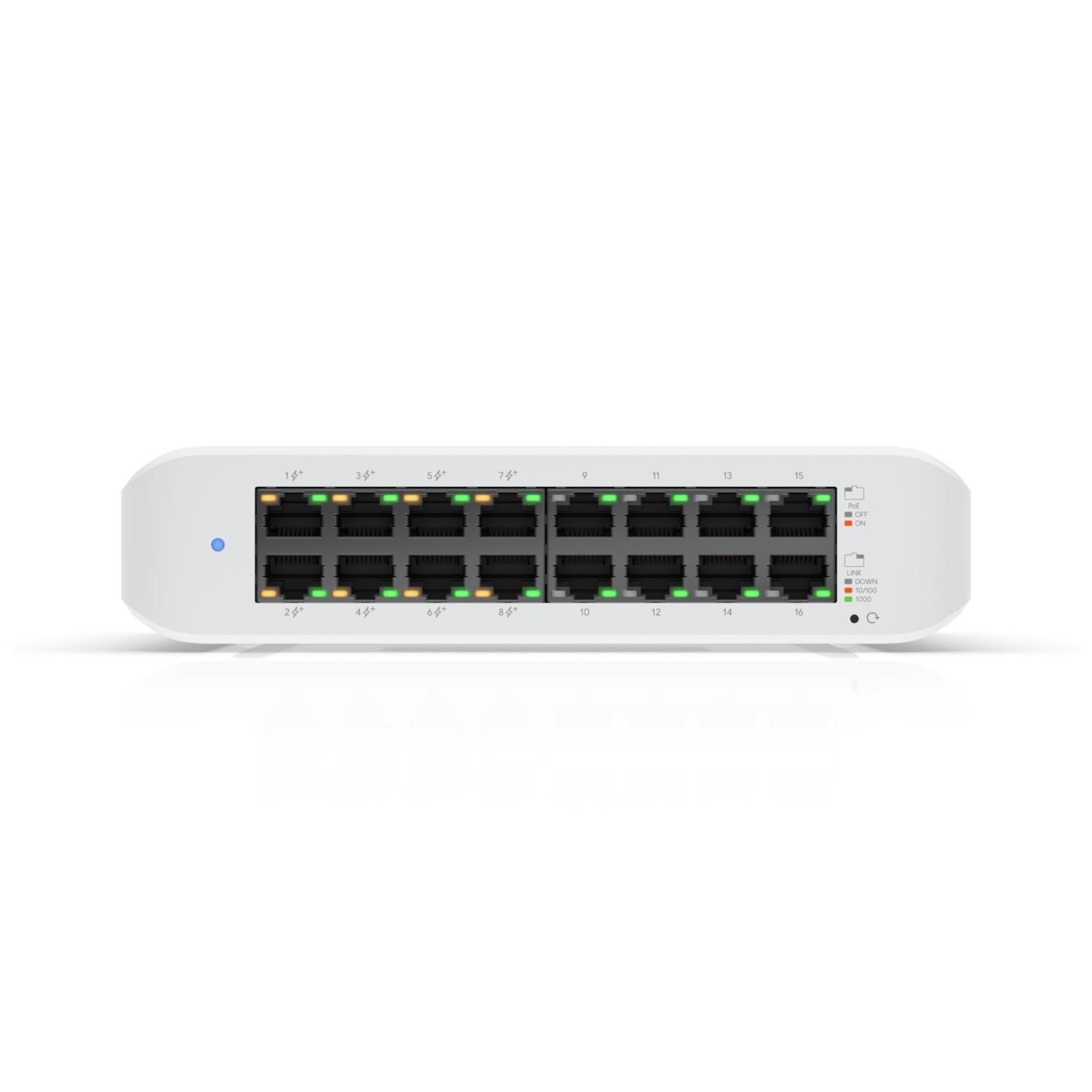

Networking interface: (16) GbE RJ45 ports
PoE interface: (8) PoE/PoE+ (Pins 1. 2+; 3. 6-)
Total non-blocking throughput: 16 Gbps
Switching capacity: 32 Gbps

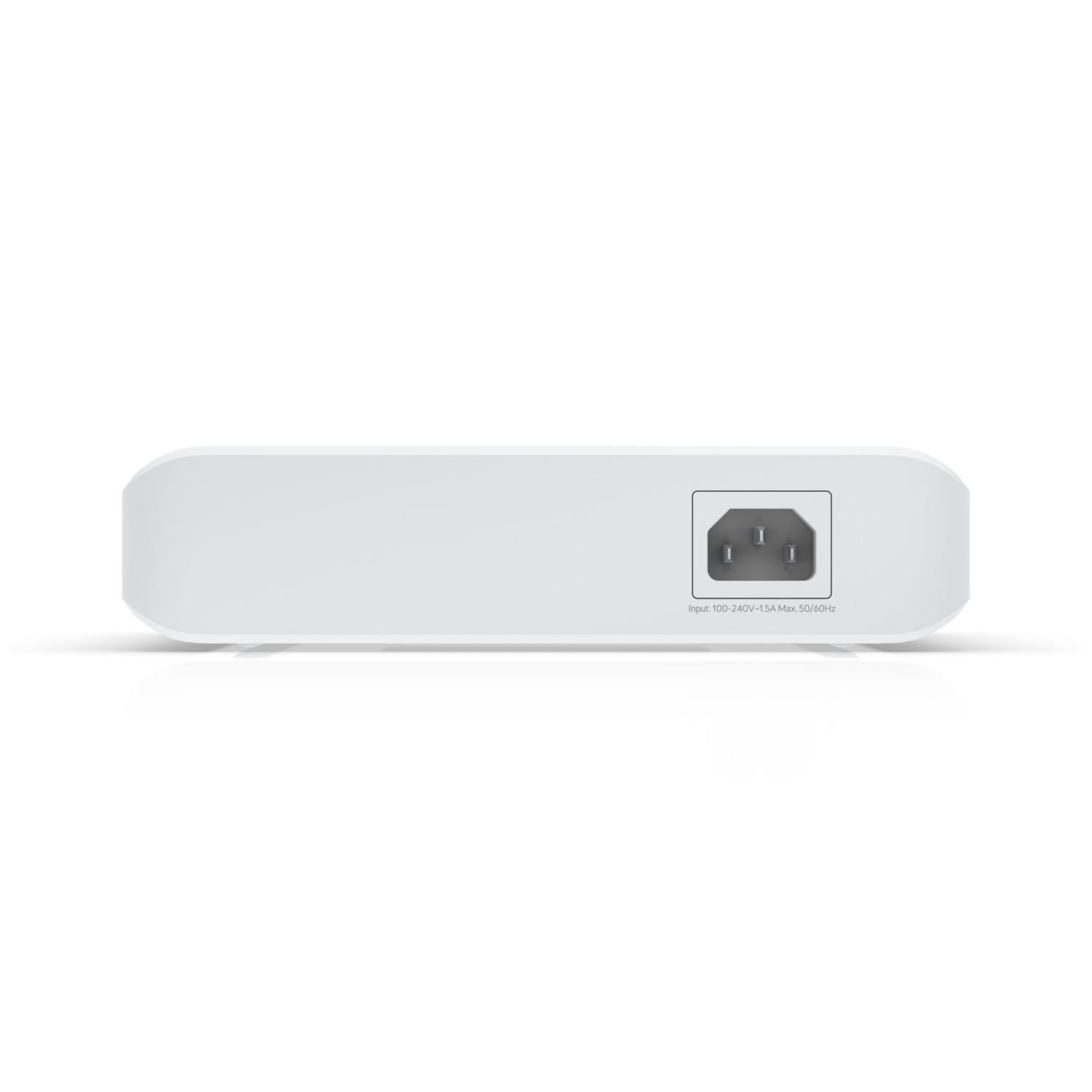

Power method: Universal input. 100—240V AC
Power supply: AC/DC. internal. 60W
Max. power consumption: 15W (Excluding PoE output)
Total available PoE: 45W
Max. PoE wattage per port by PSE: PoE+: 30W
Button: Factory reset
Ambient operating temperature: -15 to 40° C (5 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE. FCC. IC
SWITCHING FEATURES
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
LEDs
System: Status
Ethernet: PoE ; Speed/link/activity
PoE: Link/activity
PPLICATION REQUIREMENTS
UniFi Network : Version 7.2.94 and later
