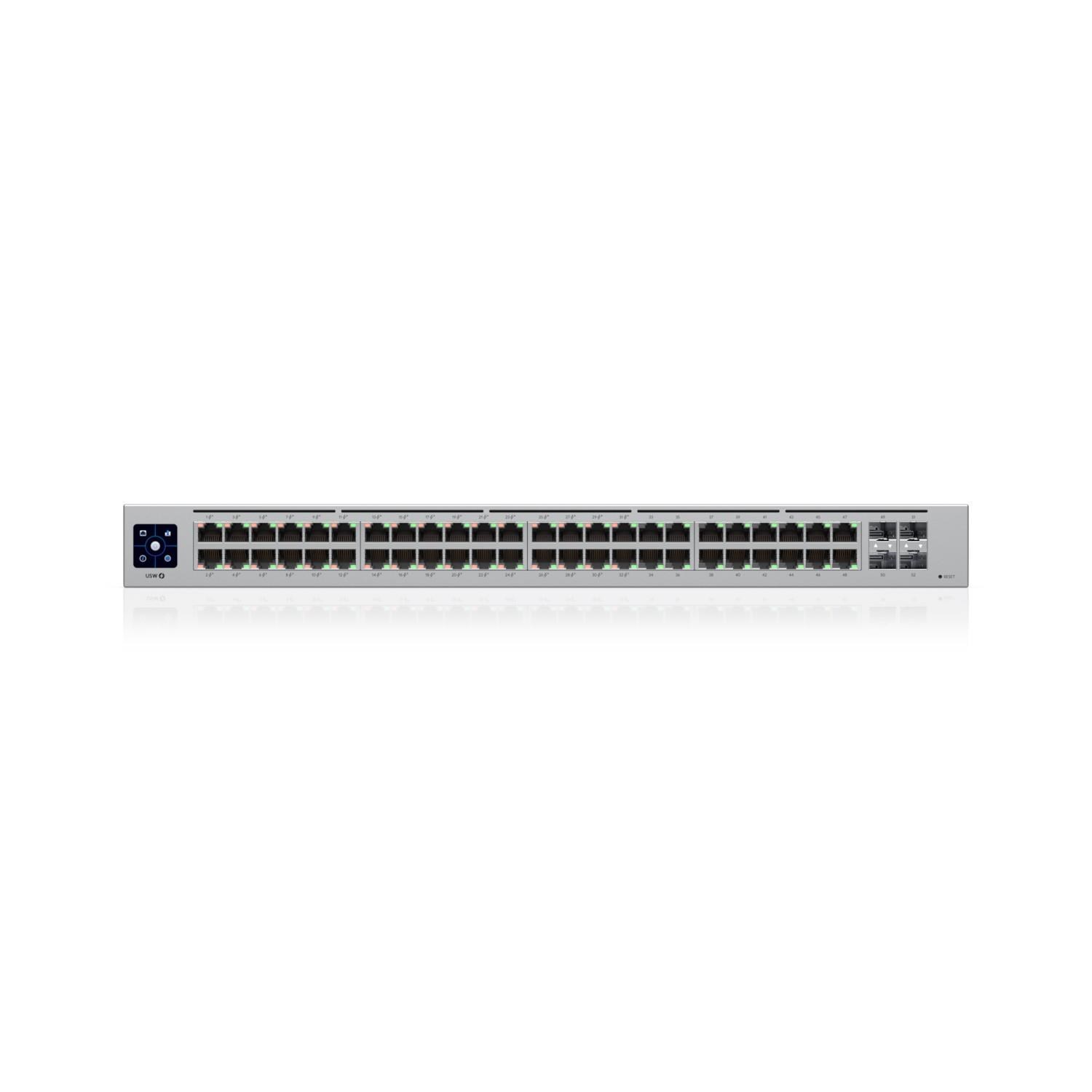

Ubiquiti USW-48-POE UniFi 48-port Managed Gigabit Layer2 Switch/48x Gigabit Ethernet Ports w/ 32x 802.3at POE+/4x SFP Port Touch Display 195W
A 48-port. Layer 2 PoE switch with a silent. fanless cooling system.
- (32) GbE PoE+. (16) GbE ports
- (4) 1G SFP ports
- 195W total PoE availability
- Fanless. silent cooling
MECHANICAL
Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7')
Weight: Without mounting brackets: 4.5 kg (10 lb) ; With mounting brackets: 4.6 kg (10.2 lb)
Enclosure material: SGCC steel
HARDWARE
Management interface: Ethernet In-Band
Networking interface:
(48) GbE RJ45 ports
(4) 1G SFP ports
PoE interface: (32) PoE/PoE+ (Pins 1. 2+; 3. 6-)
Total non-blocking throughput: 52 Gbps
Switching capacity: 104 Gbps
Forwarding rate: 77.38 Mpps
Power method: Universal input. 100—240V AC. 50/60 Hz
Power supply: AC/DC. internal. 240W
Supported voltage range: 100—240V AC
Max. power consumption: 45W (Excluding PoE output)
Total PoE available: 195W
Max. PoE wattage per port by PSE: PoE+: 32W
Voltage range PoE mode:
PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection: Air: ± 16kV. contact: ± 12kV
Shock and vibration: ETSI300-019-1.4 Standard
Ambient operating temperature: -5 to 40° C (23 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE. FCC. IC
SWITCHING FEATURES
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
LEDs
System: Status
Ethernet: PoE Speed/link/activity
SFP: Link/activity
