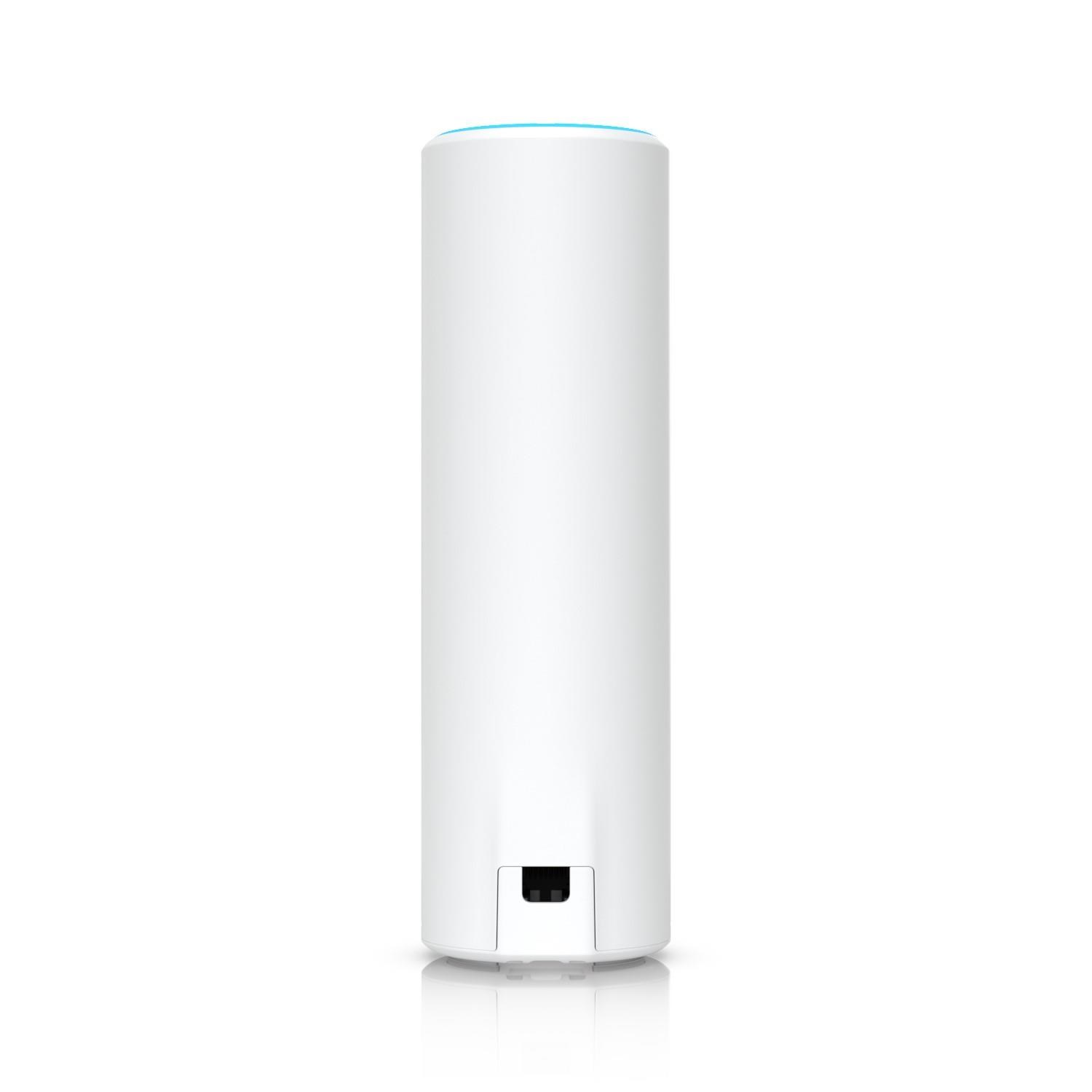

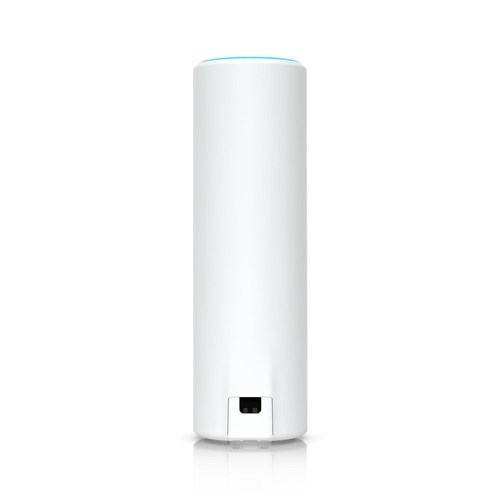

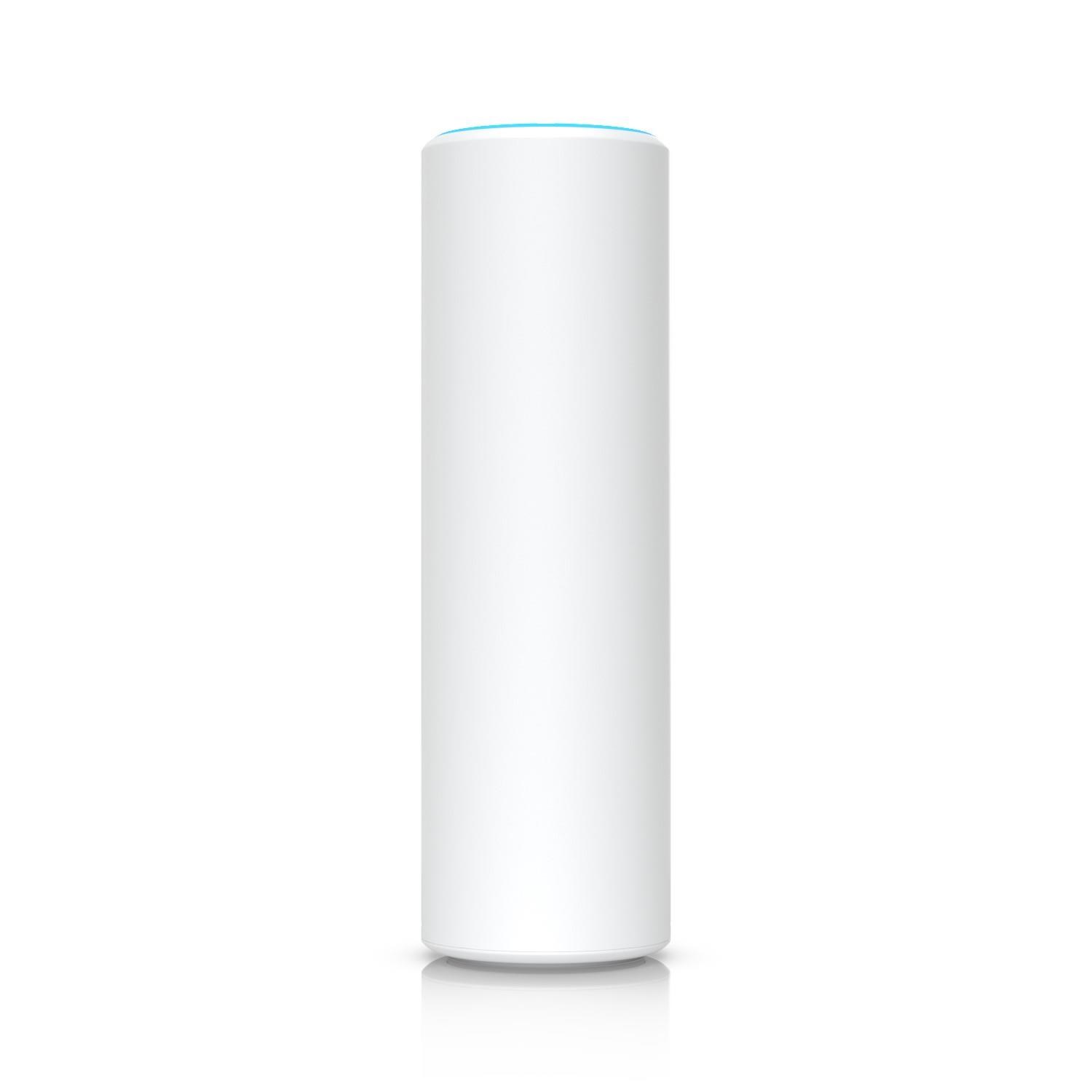

Ubiquiti U6-MESHU6-Mesh Unifi Wi-Fi 6 Mesh AP 4x4 Mu-/Mimo Wi-Fi 6/2.4Ghz 573.5Mbps/5GHz 4.8Gbps/PoE Injector Included
Sleek. indoor/outdoor WiFi 6 AP with 6 spatial streams designed for mesh applications.
- WiFi 6
- 6 spatial streams
- 140 m² (1.500 ft²) coverage
- 300+ connected devices
- Powered using PoE
- GbE uplink
- Versatile tabletop. wall. and pole mounting
- Weatherproof (outdoor exposed)*
*Weatherproof when installed LED side up with the included pole/wall mount accessory.
Mechanical
Dimensions: Ø48.5 x 159.5 mm (Ø1.9 x 6.3')
Weight: 400 g (14.1 oz)
Enclosure material: Polycarbonate. aluminium
Mount material : Polycarbonate
Weatherproofing: IPX5
HARDWARE

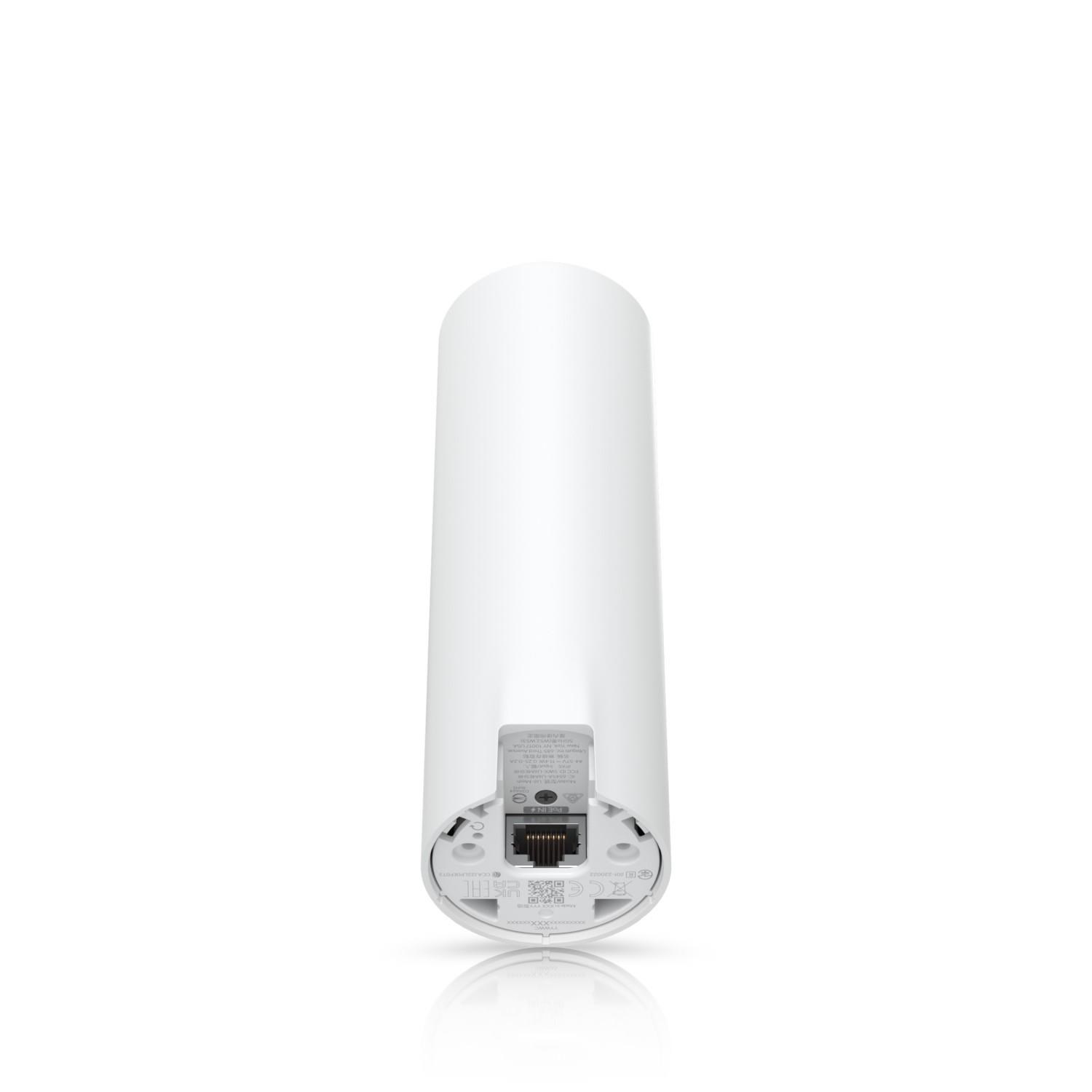

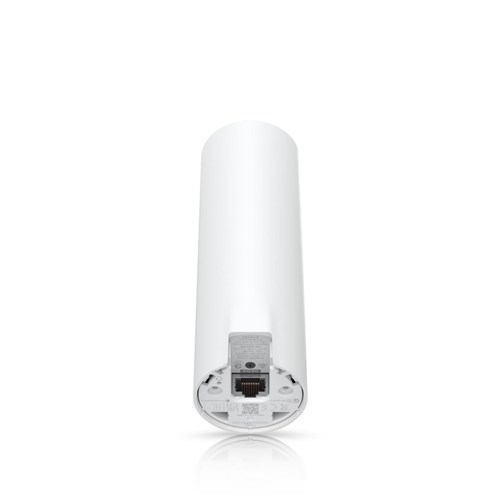

Networking interface: (1) GbE RJ45 port
Management interface: Ethernet. Bluetooth
Power method: PoE
Power supply: UniFi PoE switch 48V. 0.32A PoE adapter (Included)
Supported voltage range: 44—57V DC
Max. power consumption: 13W
Max. TX power
2.4 GHz 22 dBm
5 GHz 26 dBm
MIMO
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 4 x 4 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz 573.5 Mbps (BW40)
5 GHz 4.8 Gbps (BW160)
Antenna gain
2.4 GHz 3 dBi
5 GHz 5 dBi
LEDs: White/blue
Button: Factory reset

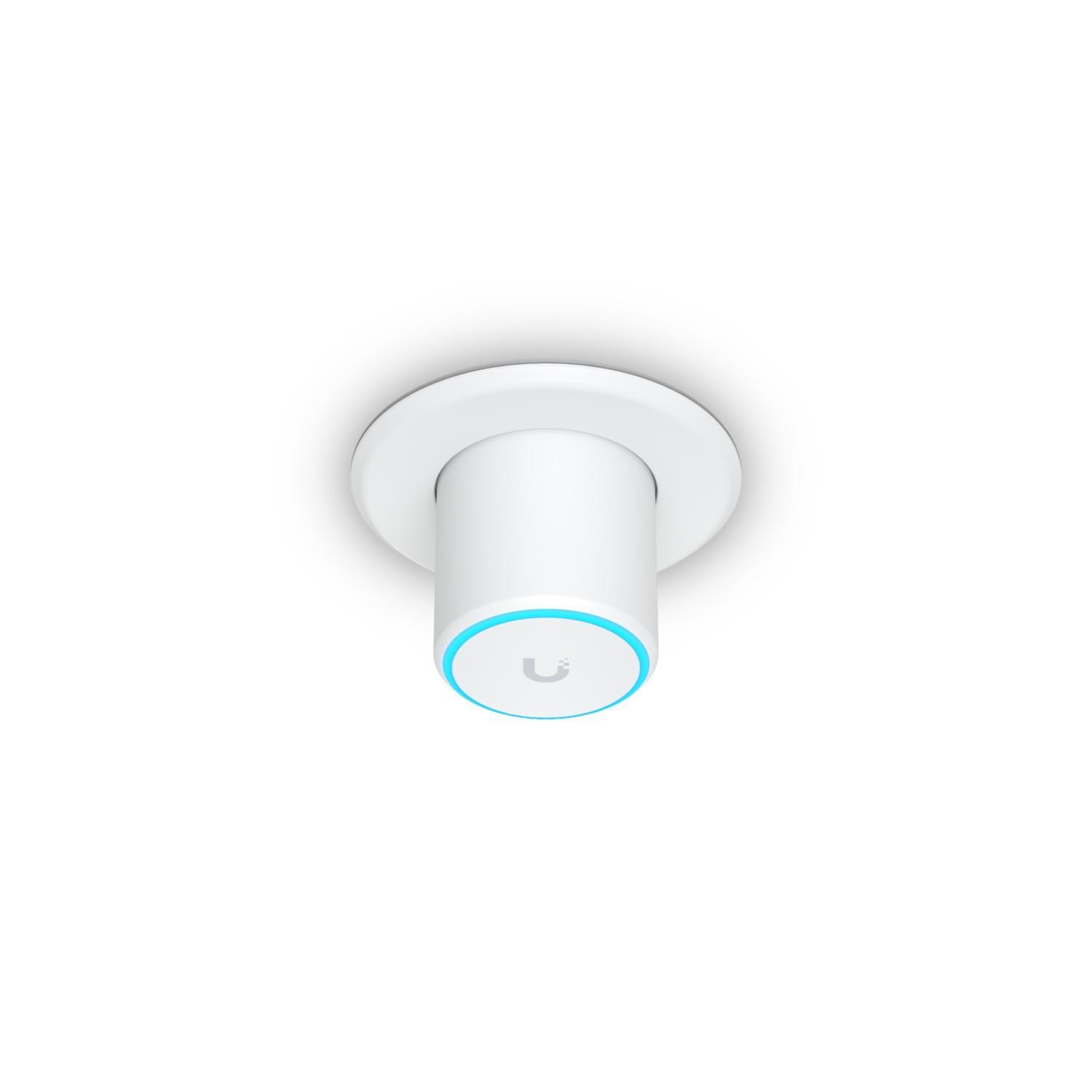

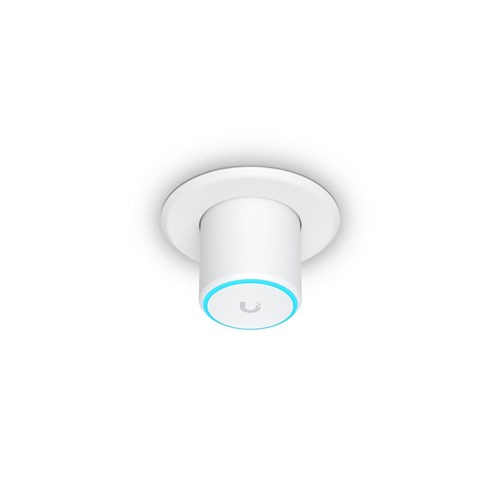

Mounting: Wall. desktop. pole (Included) ; Ceiling Optional)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE. FCC. IC
SOFTWARE
WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security: WPA-PSK. WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+
Zero wait DFS: Yes* *Supported with upcoming firmware versions
Supported Data Rates
802.11a 6. 9. 12. 18. 24. 36. 48. 54 Mbps
802.11b 1. 2. 5.5. 11 Mbps
802.11g 6. 9. 12. 18. 24. 36. 48. 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31. HT 20/40)
802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4. VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4. HE 20/40/80/160)
APPLICATION REQUIREMENT
UniFi Network: Version 6.2.51 and later
