Designed as a personal USB audio mixer. the AT-UMX3 is the perfect tool for all streamers and podcasters who are looking for a simple and reliable solution that delivers high-quality. professional results. This plug-and-play mixer allows you to connect your favourite microphone and musical instruments. all while providing a loopback function so you can easily add in your in-game or PC audio directly to your livestream mix. With its compact design and intuitive layout. you’ll always have complete mix and monitoring controls ready at your fingertips.
Plug-and-play connectivity
Connect directly to your Windows PC. Mac. smartphone or tablet1 without any additional software required.2
1 When used with smartphones or tablets. power must be supplied from an external power supply such as an AC adapter.
2 ASIO driver. software application for programming music. etc. is not included
Engineered for Audio-Technica microphones
The AT-UMX3 features specially designed microphone pre-amp that is optimized for the Audio-Technica 20 series. ensuring you get the best results every time you go live.
Made for musicians
With a Neutrik XLR/6.3mm combo microphone jack (with 48V phantom power). switchable Hi-Z (guitar/bass) or stereo input (eg keyboard). you’ll be able to connect your favourite instruments and microphones. all with their own separate mix controls.
Loopback function for live-stream mixing
Easily mix your in-game or Windows PC/MAC audio directly to your live-stream with the convenient loopback function.

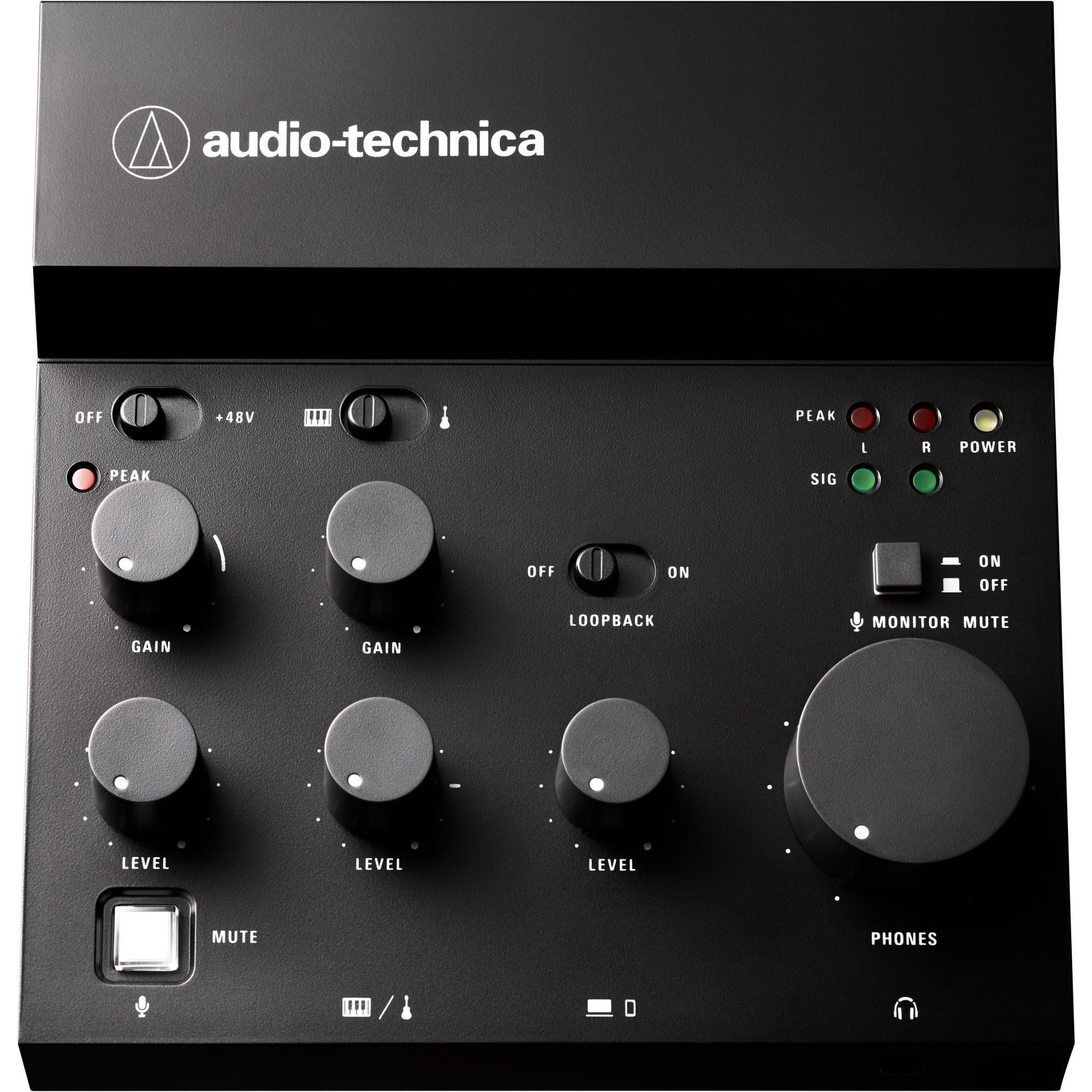

Complete audio control
The AT-UMX3 offers maximum control all while taking up minimal space on your desk. Conveniently mute your mic with the touch of a button. adjust gain. levels and personalize your monitor mix.
Key Features
Plug-and-play USB connectivity
Neutrik XLR/6.3mm combo microphone jack (with 48V phantom power) and switchable Hi-Z guitar or stereo keyboard input
Loopback functionality for livestreaming PC audio
High-performance A/D converter with a resolution up to 24 bits/192 kHz
Separate gain and level controls for microphone and guitar or keyboard inputs
Convenient microphone mute button
Output peak and signal indicator lights
6.3mm headphone output
Advanced noise-resistant design
Includes USB Type-A to USB-Type-C adapter and USB Type-C – USB Type-A cable
Specifications
Input terminals
MIC: XLR/TRS combo jack
LINE (GUITAR): 6.3 mm (1/4”) standard jack (Hi-Z)
LINE (KEYBOARD): 6.3 mm (1/4”) standard jack. L/MONO and R
USB STEREO INPUT
Output terminals
HEADPHONE OUT: 3.5 mm (1/8”) stereo mini jack
USB STEREO OUTPUT
USB
USB 2.0. High Speed
Sampling frequency
Max. 192 kHz
Bit rate
16 bit / 24 bit
Phantom power
+48 V
Power supply
USB-C bus power: 5 V. 500 mA
USB-C (power supply only): 5 V. 500 mA
Power consumption
Max. 2.5 W
Frequency response
USB input ? monitor output: ±1.5 dB (20 Hz to 20 kHz)
(With loopback ON. max. USB input level. and medium monitoring volume (at 1 kHz))
Supported OS
Windows: Windows 10. Windows 11
macOS: macOS Catalina. macOS Big Sur. macOS Monterey.
macOS Ventura
iOS: 16.4.1
iPad OS: 16.4.1
Android OS: 10. 11. 12. 13
Weight
334g
Dimensions (including protrusions)
127 mm (5”) × 131 mm (5.2”) × 44 mm (1.7”) (W × D × H)
Accessories
USB cable (1.5 m (4.9'). USB Type-C to USB Type-A)
USB conversion adapter (USB Type-A to USB Type-C)
